DT7210
10 in stock
- SOLAR PoE SWITCH – Industrial PoE Switch with built-in solar charge controller, working directly with PV solar panels (Max. 300W) and batteries to supply non-stop PoE power for security cameras, Wireless bridges, LED lights, etc.
- FIVE PoE OUTPUTS – Port 1: Up to 802.3bt PoE++ 60W output; Port 2-3: PoE+ 30W output; Port 4-5: PoE+30W or Passive 24V PoE output; Total PoE budget 65W.
- BATTERY MANAGEMENT – Compatible to Lead acid battery, LiFePO4 battery and Ternary Lithium battery.
- UPS PoE SWITCH – Support external DC input (DC15V~36V) for UPS application, flexible and stopless power supply from external power, solar panel or battery.
- PASSIVE PoE 24V OUTPUT – The port 4 and 5 can be set to Passive PoE 24V mode, and provide direct PoE power to wireless bridges or APs.
- INDUSTRIAL DESIGN – Designed for harsh environment (-20℃～60℃), Fanless metal enclosure, 6KV surge protection.
Application
- Perfect for Solar power system for security cameras, wireless bridges and APs.
- Used for UPS power system to ensure non-stop PoE power supply for cameras and wireless bridges.
Ship from China warehouse, normally ship out in one business day.By default Express ship by FedEx or DHL, the typical delivery time is less than one week. Import customs duty or tax may be charged and at customer's cost.24/7 US LOCAL + GLOBAL TECH SUPPORT
OFFER CUSTOMIZATION SERVICES
- Custom Logo & Branding
- Label Customization
- Port Speeds
- PoE Budget
Follow us on :

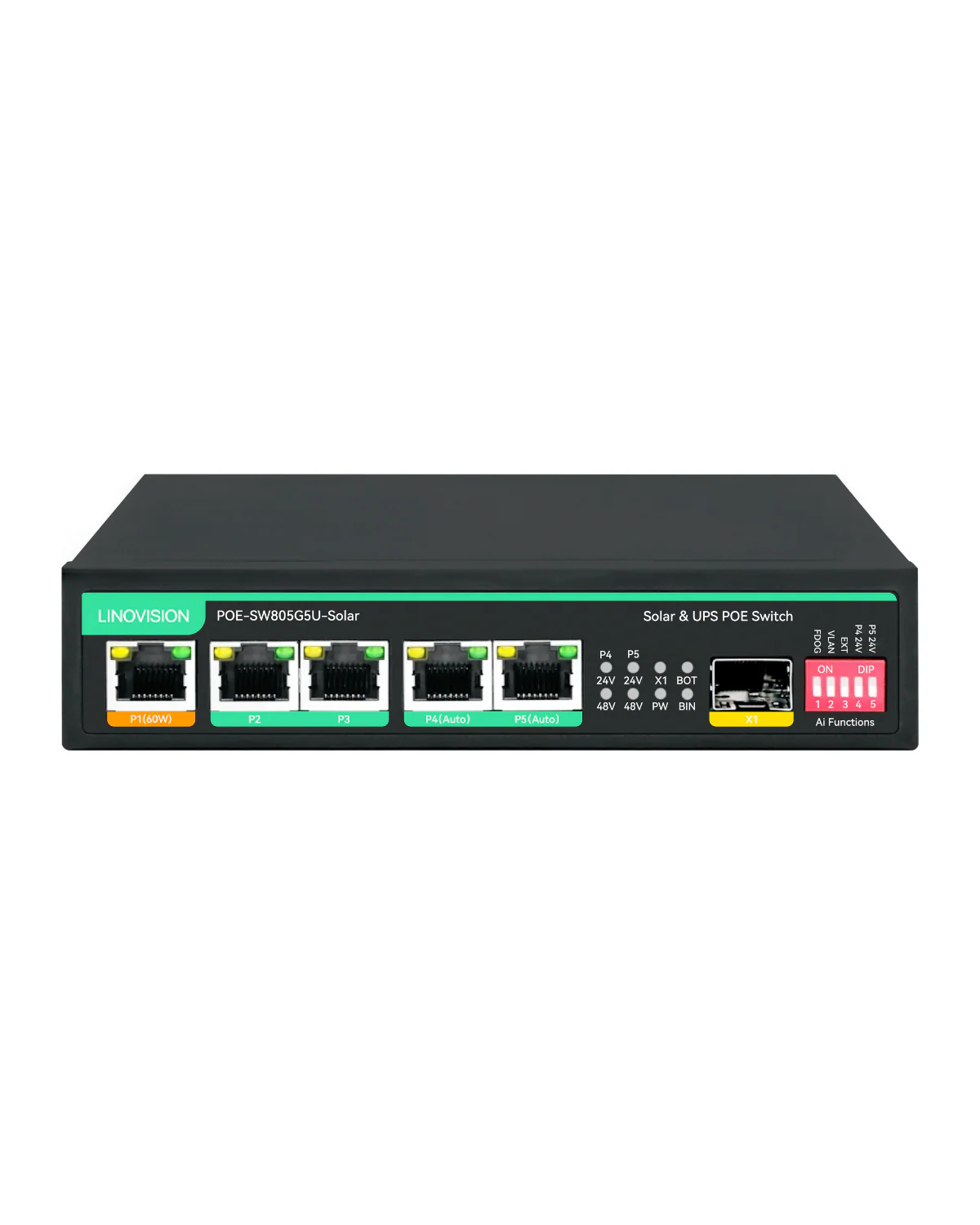

LINOVISION Solar PoE Switch with built-in Solar Charge Controller
Battery Management and External DC Charging, Non-Stop UPS Power for Up to 5 PoE Cameras and PoE 24V Wireless Bridges and APs
Application
Key Specification
| Model | POE-SW805G5U-Solar |
|---|---|
| Solar & UPS Management | |
| Flexible Power Supply and Priority | Solar Power > External DC > Battery |
| Built-in Solar Charge Controller | Yes (PWM Controller) |
| Solar PV Input | 300W Max |
| ≤32V(in DC 12V Mode ) or ≤45V(in DC 24V Mode) | |
| Max. Charging Current | 5A |
| Support external DC charging | Yes |
| DC Input Range | For 12V Battery: DC 15-26V; |
| For 24V Battery: DC 30-36V | |
| Built-in Battery Management | Yes |
| Battery Type | Lead Acid/Lithium/LiFePO4 |
| Battery Input | 12/24V 5A |
| Battery Capacity | 50AH |
| Discharge Current | 8A |
| POE Switch | |
| Interfaces | (5) 10/100/1000Base-T RJ45 Ports |
| (1) 1.25G SFP Slot | |
| PoE Outputs | Port 1: 802.3bt PoE++ 60W (Pin 1/2/4/5+, 3/6/7/8-) |
| Port 2-3: 802.3af/at PoE 30W (Pin 1/2+, 3/6-) | |
| Port 4-5: 802.3af/at PoE 30W (Pin 1/2+, 3/6-) or Passive 24V PoE 24W (Pin 4/5+, 7/8-) | |
| Total PoE Budge | 65W |
| Exchange Capacity | 12Gbps |
| Packet Forwarding Rate | 8.94Mpps |
| Mac Address Table | 2k |
| Packet Buffer Memory | 2.4Mb |
| Jumbo Frame | 10240 Bytes |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| System | |
| Enclosure | Metal, fanless design |
| Dimension | 5.91 x 5.12 x 1.34 Inches (160×130×34 mm) |
| Net Weight | 1.61 lbs (0.73kg) |
| Power Consumption | 5W Max (without PoE output) |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| Working Temperature | -4 ℉ ~ 140 ℉ (-20℃～60℃) |
| Storage Temperature | -22 ℉ ~ 158 ℉ (-30℃～70℃) |
| Working Humidity | 10%～90% RH non-condensing |
| Storage Humidity | 5%～90% RH non-condensing |
Comparison
RUIGU Cellular Routers Selection Guide
| | | | | |
|---|---|---|---|---|---|
| Model | DT7210 | DT7710 | DT7200 | X700 | X300 |
| Cellular Network | 4G LTE Cat4 | 5G & 4G LTE Cat16 | |||
| Max. Link Speed | Up to 150Mbps downlink and 50Mbps uplink | Up to 2500Mbps downlink and 350Mbps uplink | |||
| Compatible carriers | AT&T, T-Mobile, Verizon | AT&T, T-Mobile, Verizon | AT&T, T-Mobile | AT&T, T-Mobile | AT&T, T-Mobile |
| 4G LTE Bands (US version) | B1/B2/B3/B4/B5/B7/B8/ B9/B12/B13/B17/B18/ B19/B20/B25/B26/B28/B66 | B2/B4/B5/B12/B13/ B14/B66/B71 | B2/B4/B5/B12/B13/ B25/B26 | B1/B3/B5/B7/B8/ B20/B28/B32 | B2/B4/B5/B7/B12/B13 /B14/B17/B25/B26/ B29/B30/B66/B71 |
| SIM Card Slot | One SIM + eSIM | TWO SIM | One SIM | Two SIM | One SIM |
| Data Plan | vSIM Data Plan, global coverage without roaming | Depends on SIM carriers | |||
| WiFi | 2.4G WiFi | 2.4G WiFI | N/A | Dual Bands WiFi | Dual Bands WiFi 6 |
| Ethernet Ports | One | Two | One | Five | Two |
| RS485 & MQTT | Yes | Yes | Yes | N/A | N/A |
| Dimension | 3.94*3.07*0.87 in | 4.25*3.54*1.02 in | 2.76*2.17*0.87 in | 5.31*4.65*1.77 in | 4.13*4.33*8.58 in |
| Main Applications | Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Global data access | Connectivity for security cameras,sensors and IoT devices; High speed internet on the go; Internet failover | Connectivity for security cameras,sensors and IoT devices; Low power consumption | High speed internet on the go; Internet failover | High speed internet on the go; Internet failover; WiFi CPE |
